La rampa de dos postes Atlas Pro-9D es la elección perfecta para aquellos talleres que buscan la mayor capacidad de levante con la máxima calidad posible.

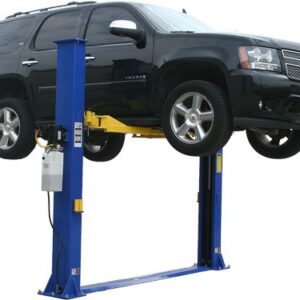

Rampa de dos postes Atlas ® Pro-9D
$0.00
ATLAS® PRO-9D SPECIFICATIONS
Capacity 9,000 LB.
Lifting Time Ask Your Salesperson
Overall Height 144″ (12′)
Overall Width 142 1/2″ (11′ 10 1/2″) (With Power Unit)
133 7/8″ (11′ 1 7/8″) (Without Power Unit)
Outside Column To Outside Column 124 1/8″ (10′ 4 1/8″)
Lift Height
(Without Adapters) On Locks: 68″ (5′ 8″)
Not On Locks: 71 5/8″ (5′ 11 5/8″)
Maximum Lift Height
(With Adapters) On Locks: 74 1/2″ (6′ 2 1/2″)
Not On Locks: 77 5/8″ (6′ 5 5/8″)
Padded Bar Height 135 1/4″ (11′ 3 1/4″)
Minimum Arm Height 4 1/2″
Inside Column 109 5/8″ (9′ 1 5/8″)
Column Size 7 1/4″ x 11″
Drive Thru 100 1/4″ (8′ 4 1/4″) (Symmetric Arm Configuration)
92″ (7′ 8″) (Asymmetric Arm Configuration)
Base of Lift 14 ½» x 18″
Column Thickness of Steel 5mm
Carriage Thickness of Steel 6mm
Arms Thickness of Steel 6mm
Cable Diameter .375″
Motor/Electrical Requirement 220V single (1) phase.
A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Requires a minimum of 4″ of concrete with 3000 psi.
Shipping Weight 1450 lbs.
Disponible para reserva
